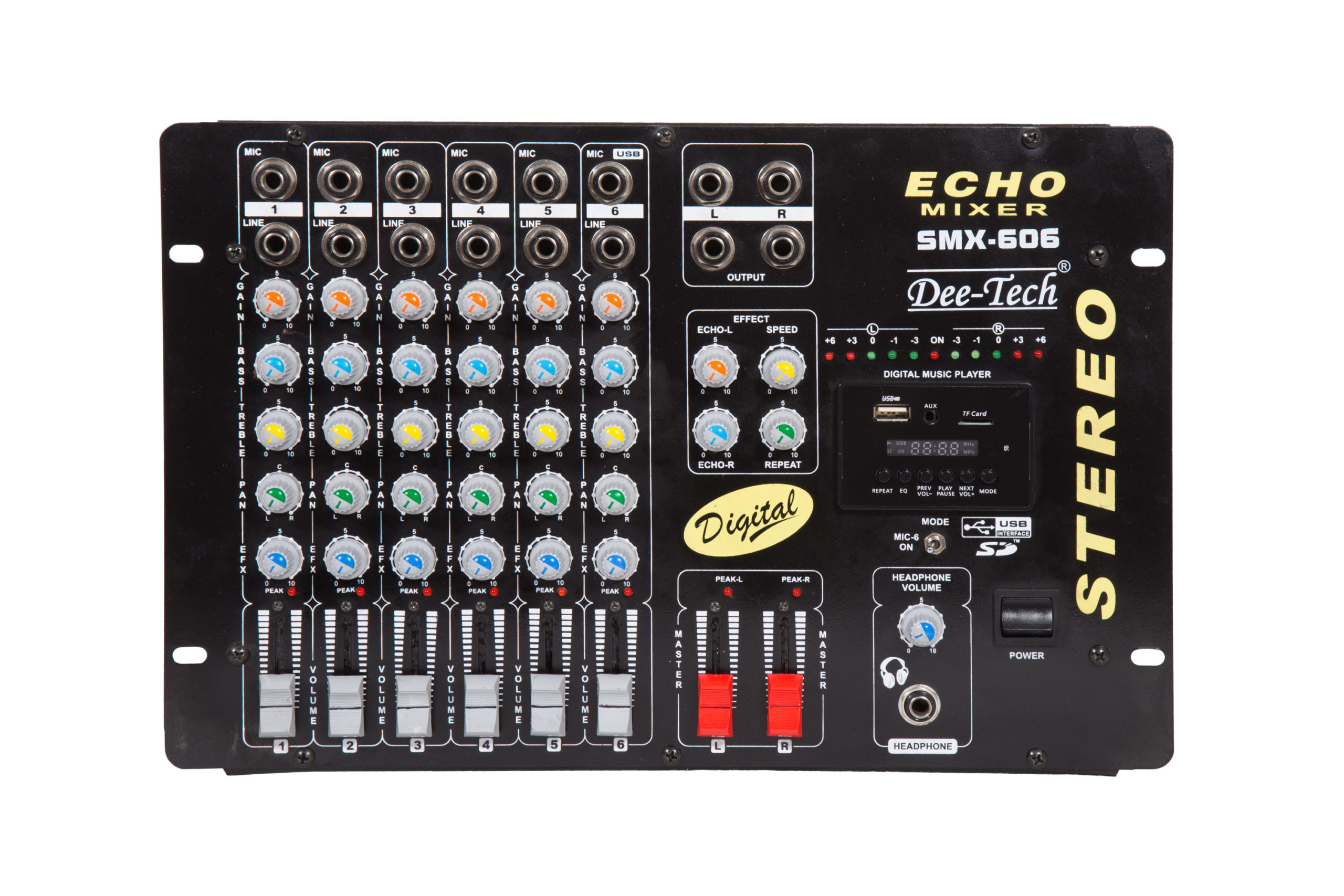

SMX-606 Mixer (6 Channels)
Power Supply: 230 AC/12V DC
Gain, Bars, Treble, Pan, Echo Controls
30MM Slide Fader for Each Volume
5+5 Segment LED VU Meter for L & R Channel
Repeat & Speed Control for Echo
Head Phone with Gain Control
Dimensions: W 290 x H 140 x L 400 MM
Weight: 3.43 Kg
- Input Channels: Each Channel has separate 1/4 balanced phone jack for Mic and Line & accepts both balanced & unbalanced signals.
- AUX Control: This controls the level of the channel in the final mix to Aux Send output.
- AUX Send & AUX Return: These have been provided for sending the pre-fader output of channels for monitoring or for adding a Special Effects Unit.
- MONO/STEREO Output: Mono output is available from either Left & Right output jacks when the switch is in Mono position.
