Description

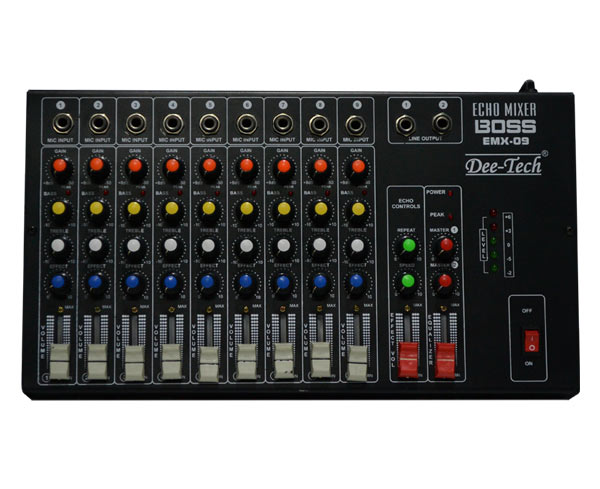

EMX-09 Mixer (9 Channels)

Power Supply: 230 AC/12V DC

Gain, Bars, Treble, Echo Controls

30MM Slide Fader for Each Volume

Two Outputs

Master Equalizer Control

5 Segment LED VU Meter

Repeat & Speed Control for Echo

Dimensions: W 260 x H 140 x L 420 MM

Weight: 2.97 Kg

Features

• Input Channels: Each Channel has separate 1/4 balanced phone jack for Mic and Line & accepts both balanced & unbalanced signals.
• AUX Control: This controls the level of the channel in the final mix to Aux Send output.
• AUX Send & AUX Return: These have been provided for sending the pre-fader output of channels for monitoring or for adding a Special Effects Unit.
• MONO/STEREO Output: Mono output is available from either Left & Right output jacks when the switch is in Mono position.
