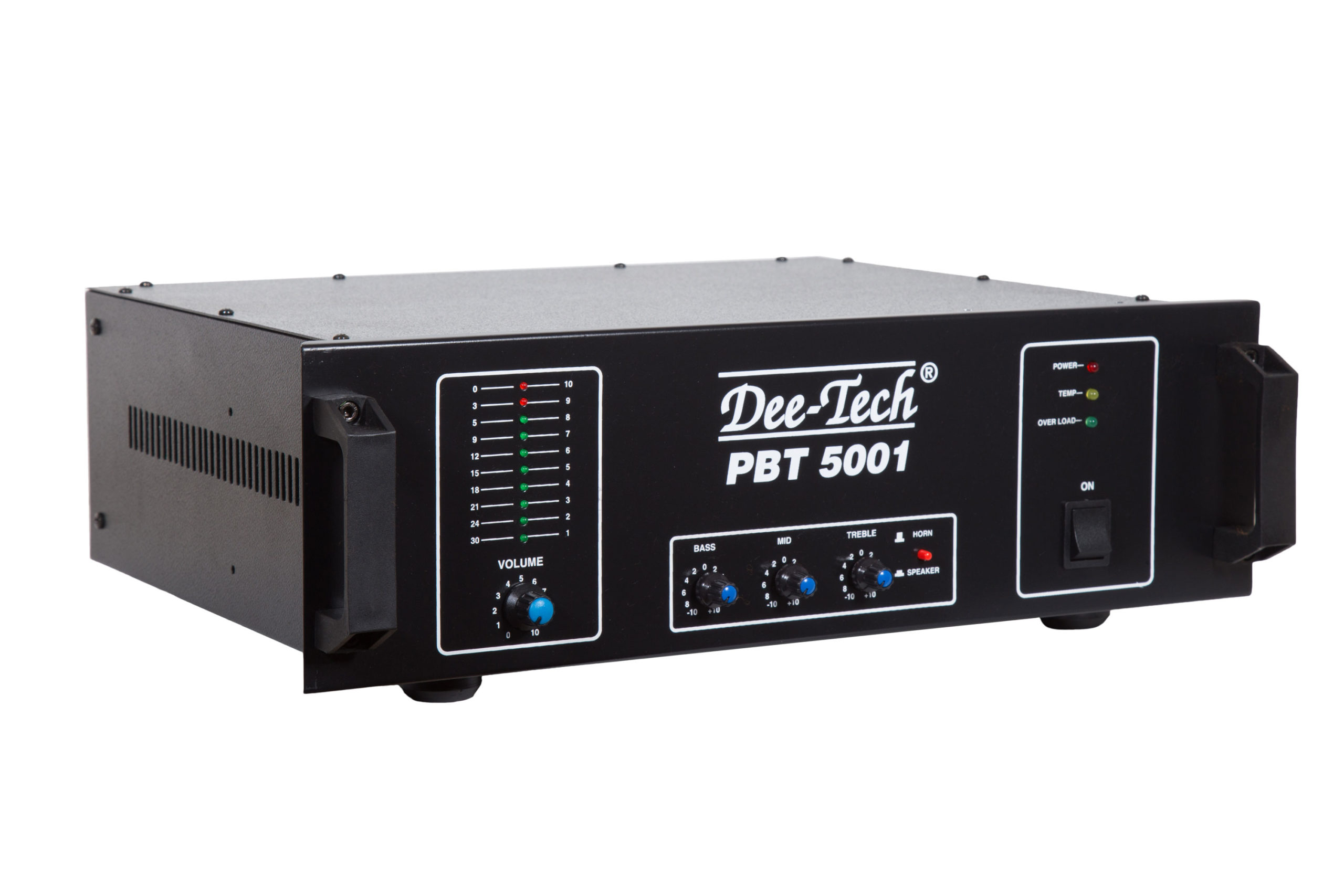

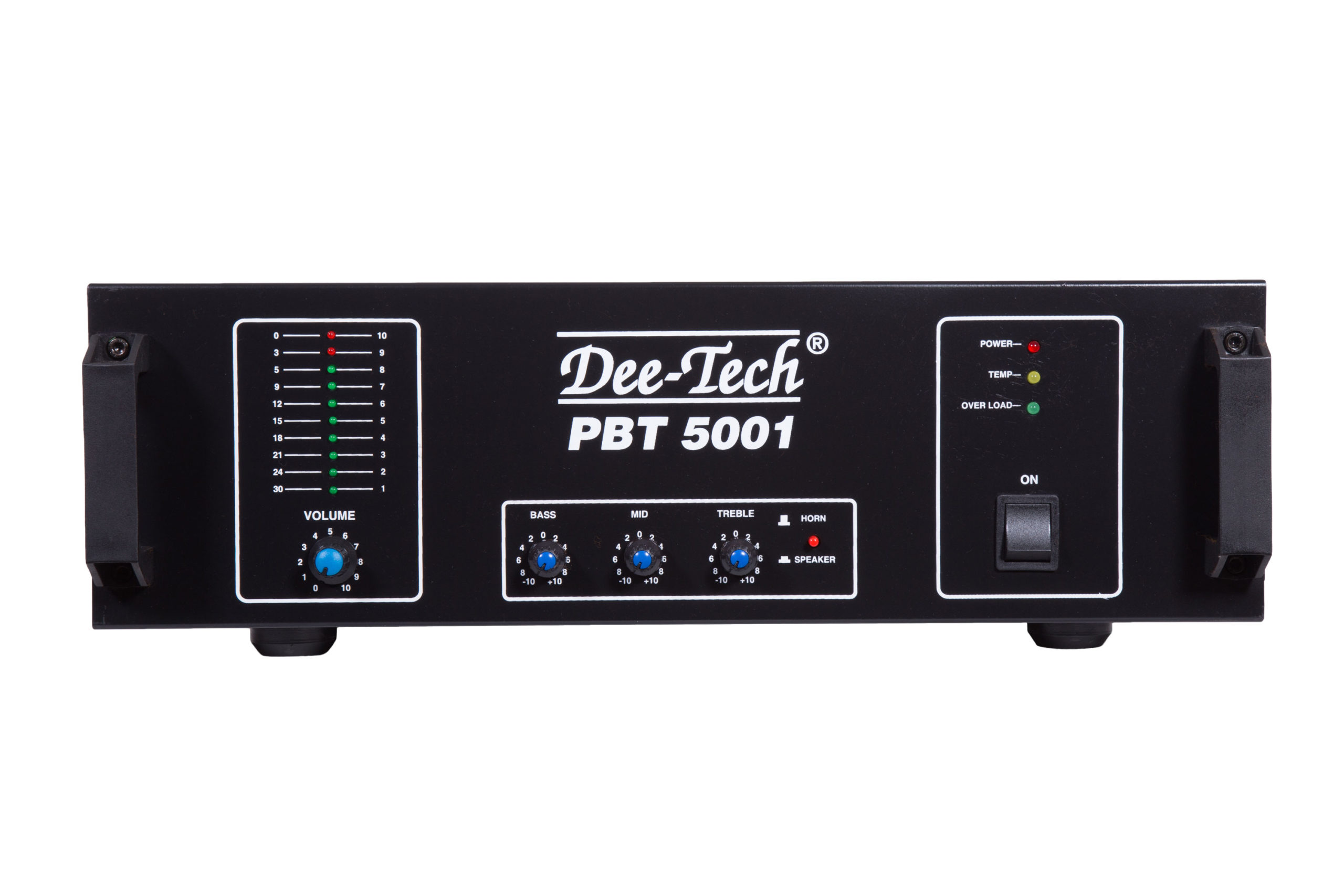

Professional 500 Watt DJ Booster Amplifier



PBT-5001 DJ Booster Amplifier

Model No: PBT-5001

Product: DJ Booster Amplifier

Watts: 500 Watts



Power Supply: 230V AC
Power Output:  450 W RMS in 10% 4 ohms
600 W RMS in 10% 2 ohms
70 & 100 W Line (Used with LMT)

Input: IV/200mV Line in & 200mV Stereo Input

Freq. Response: 20 Hz-20 kHz

Size: H 250 x L 560 x W 490

Weight: 25 Kg

  • PBT-5001 is a multi application Super Power Booster PA Amplifier with rated output 500 Watts, ideal for driving high power speakers as well as large PA Installations involving large number of speakers. This amplifier is designed to give high power, clean sound and reliable, trouble free operation under extreme climatic & weather conditions. Features include balanced input 200mV/1V switchable through slide switch & 100V input through two pin terminal strip. In addition resettable circuit protector, Cut/Boost Bass/Mid/Treble controls.

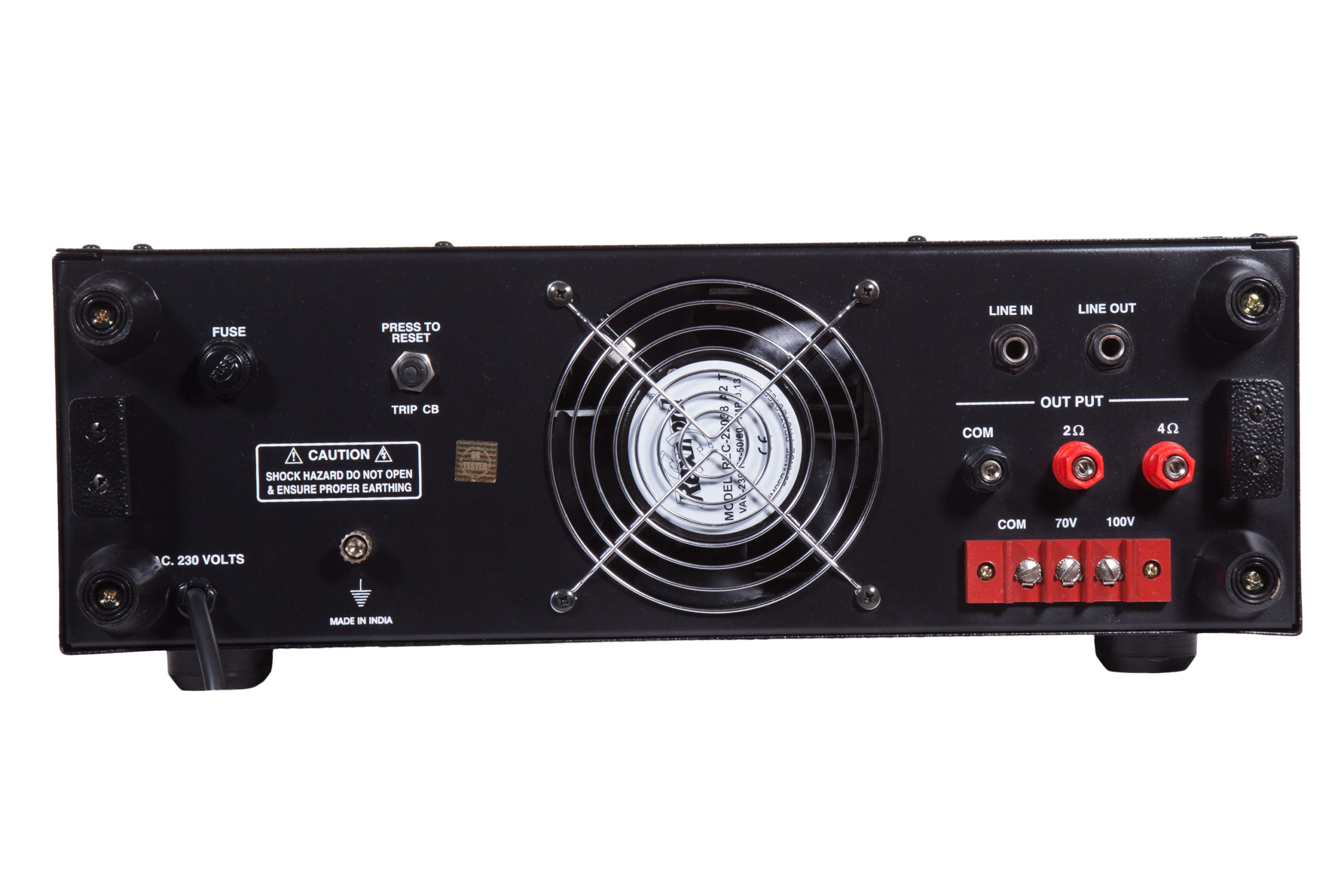

  • 70V/100V Output for long distance LMT connections.
  • Balanced Input 200mV/1V switchable.
  • Output jack provided for connecting to another Booster Amplifier for getting more output.
  • Cut-boost type Bass/Treble controls.
  • Box Speaker/Driver Unit selector switch. Bass boost can be defeated at Driver Unit position for safer operation of driver units.

Additional information

Weight 25 kg
