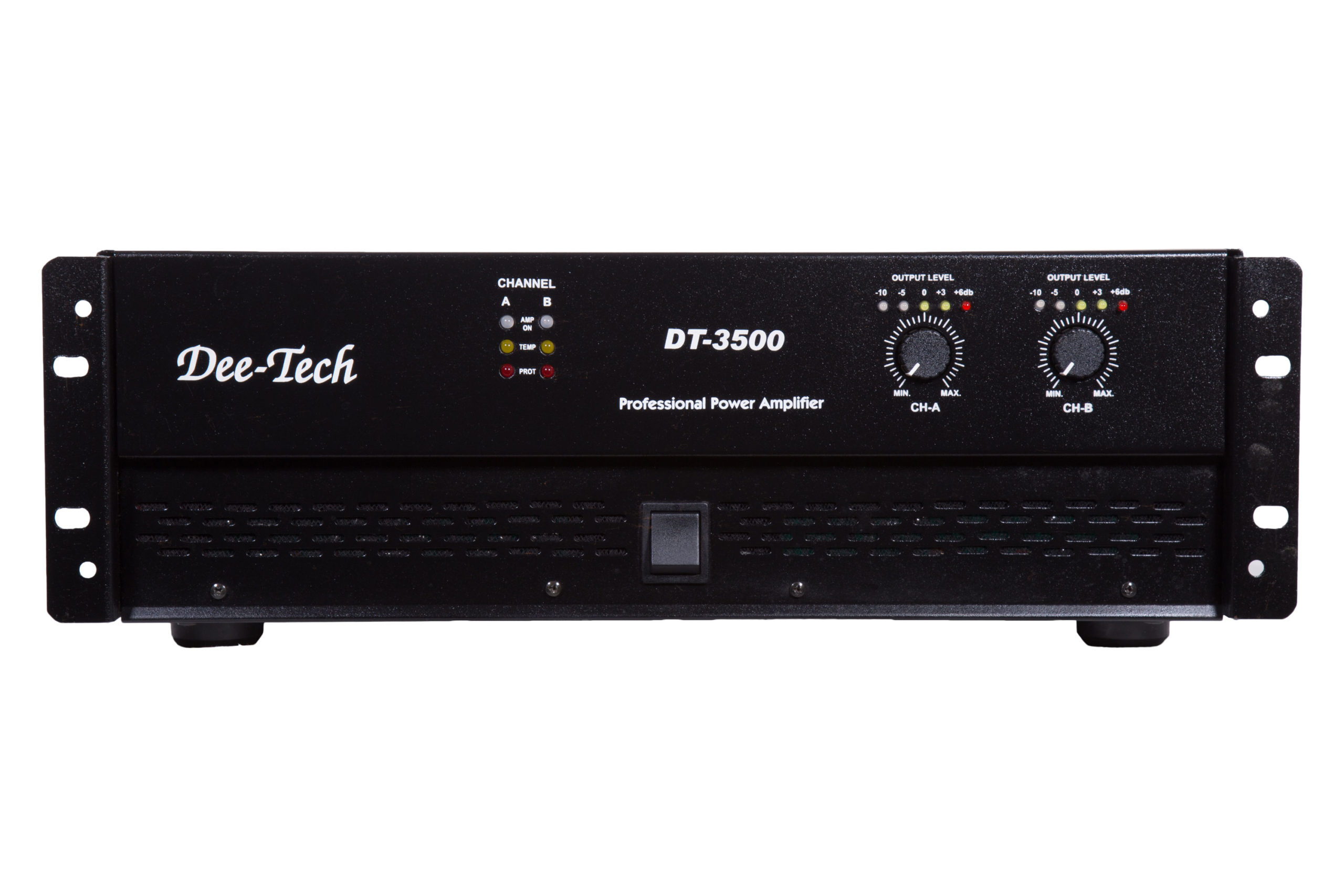

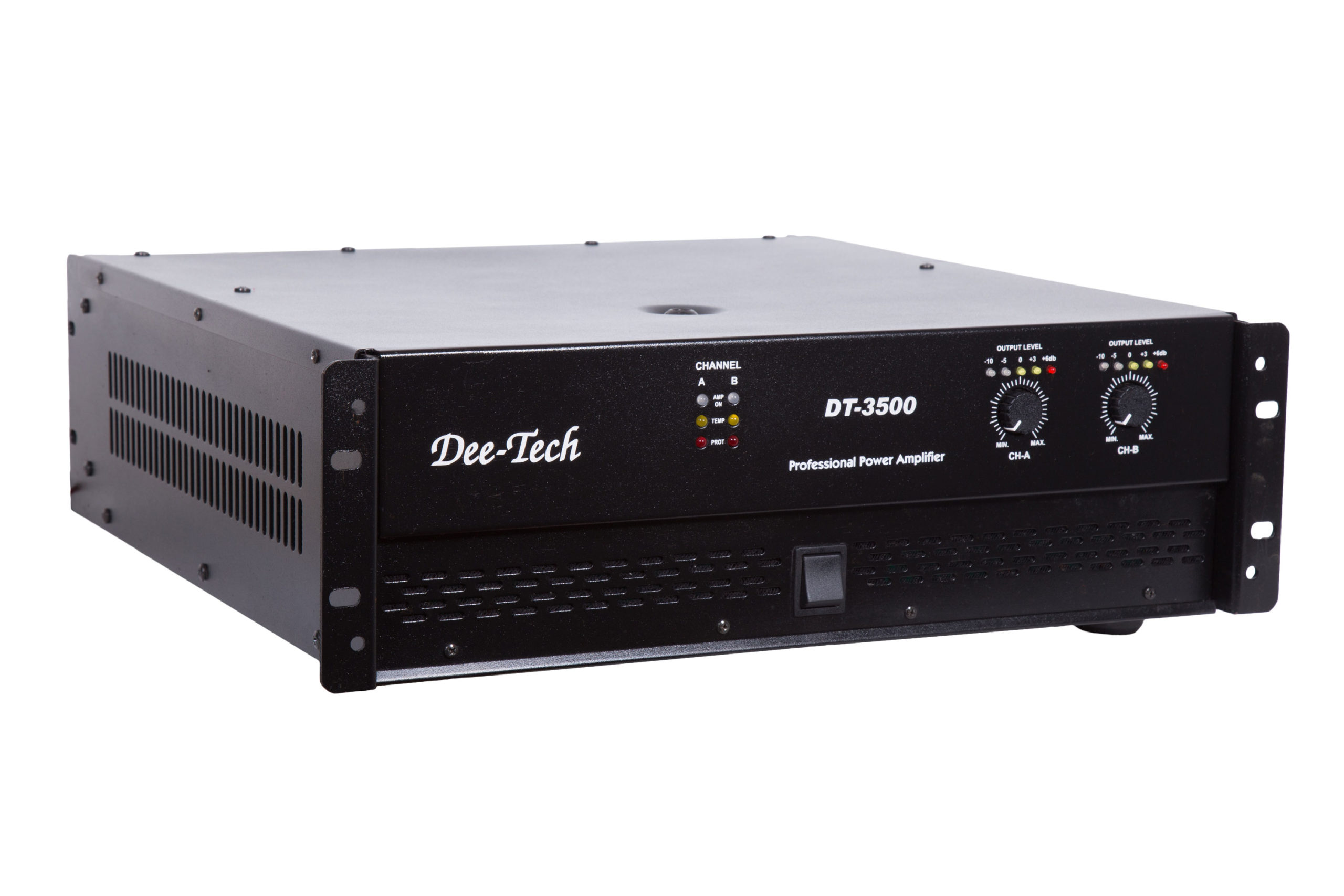

Professional 3500 Watt Power Amplifier



Model No: DT-3500


Product: Power Amplifier


Watts: 3500 Watts






Power Supply: 230V AC

Power Output: 1250 + 1250 Watts in 2 ohms
800 + 800 Watts in 4 ohms
500 + 500 Watts in 8 ohms
70 & 100 W Line (Used with LMT)


Input: IV/200mV Line in & 200mV Stereo Input


Freq. Response: 20 Hz-20 kHz



  • Balanced / unbalanced inputs signal through parallel XLR connector in both channels.

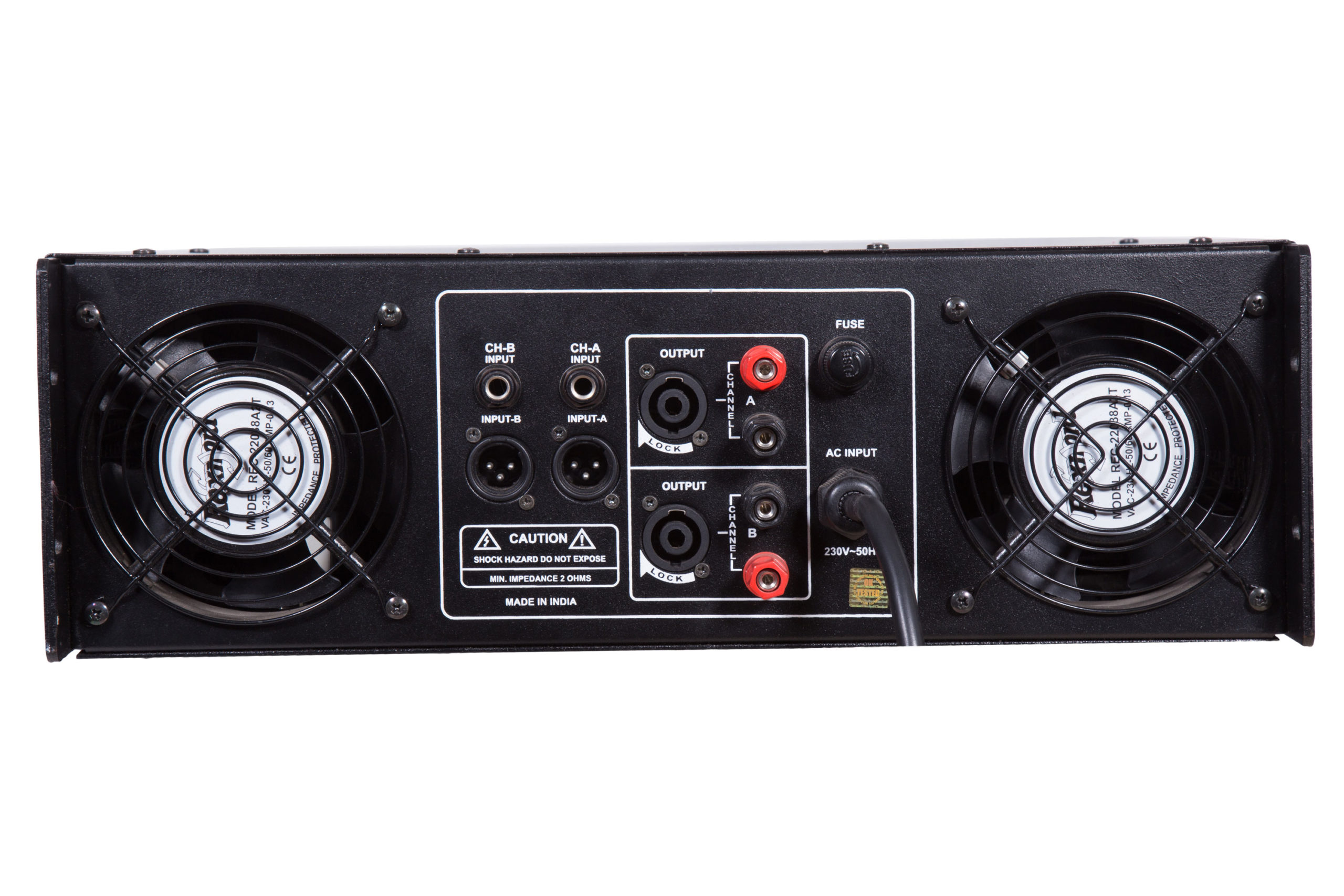

  • Output termination on 4 way speakon connectors and binding posts for each channel.
  • Selectable slide switch for stereo, parallel & bridge mono amp modes
  • Selectable sensitivity slide switch for ( 0.775V , 1V or 1.4V)
  • Selectable slide switch for low-cut (30Hz) on/off
  • Selectable slide switch for ground lift in case of ground loops
  • Selectable Slide Switch for HF Limiter
  • Signal and Clip LED indicators to monitor performance
  • Front mounted detent gain controls for easy access
  • Fast recovery design for lower distortion if clipping occurs
  • Low THD and high damping factor for excellent sound quality.
  • Advanced protection circuitry guards against: short circuit, open circuit, thermal, and DC
  • Two variable speed fans
  • Rack mountable Rugged housing
  • Zero Noise


Additional information

Weight 31 kg
